How to Create a Self-similar Christmas Tree Using SAS

The season of celebration is here! Christmas is just around the corner. And here is a beautiful self-similar Christmas tree that was created using SAS with the help of two fascinating features – matrix computations and ODS statistical graphics.

How to Create a Self-similar Christmas Tree Using SAS

Experiencing self-similarity in Kronecker products

You might have come across blogposts highlighting how repeated Kronecker product of a binary matrix ushers us into self-similar structures. But this time, we are taking special care in introducing self-similarity in Kronecker products – like, if M is a binary matrix then Kronecker product happens to be M@M, which is a block matrix in which each 1 inside the original matrix is replaced by a copy of M, and each O is replaced with a zero block. In this blog, @ stands for the Kronecker product (or direct product) operator implemented in IML/SAS software).




Carry this process for three or more times and generate a heat map of the product matrix to help create a self-similar structure.

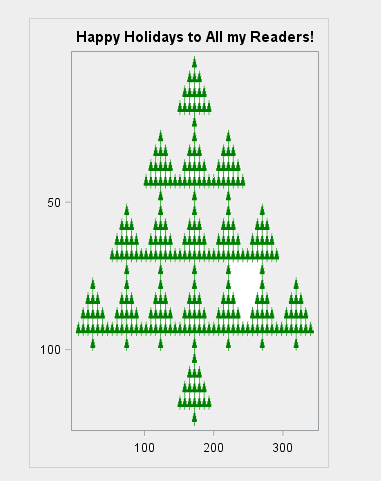

For an instance, the following 5×7 binary matrix possesses 1 in positions that resemble the shape of a Christmas tree. The direct product, M@M@M is a powerful matrix that includes 53 = 125 rows and 73 = 343 columns. The creation of a heat map of the direct product in SAS/IML is done by using HEATMAPDISC, in which a green cell represents a 1:


proc iml;
M = {0 0 0 1 0 0 0,
     0 0 1 1 1 0 0,
     0 1 1 1 1 1 0,
     1 1 1 1 1 1 1,
     0 0 0 1 0 0 0};
Tree = M @ M @ M;     /* M is 5 x 7, so Tree is 125 x 343 */
ods graphics / width=300px height=450px  ANTIALIASMAX=50000;
call heatmapdisc(Tree) title="Happy Holidays to All my Readers!"
     colorramp={White Green} displayoutlines=0 ShowLegend=0;



Now, that you can see the tree for yourself, you can also visualize a large tree with 17 smaller trees, each consisting of 17 mini trees.


How to add a star above?

Now, are you wondering about how to put a star up on the tree? The best way to do it is by using a scatter plot and drawing a special observation by implementing a star symbol – then unpack the 125×343 matrix into a list of (x,y) values (it’s a broad-and-long conversion of the matrix).


Another way is by using the NDX2SUB function to extract the column and row of each 1 in the matrix in the following manner:


/* extract (row, column) pairs for matrix elements that are '1' */
idx = loc(Tree = 1);                /* indices for the 1s */
s = ndx2sub(dimension(Tree), idx);  /* convert indices to subscripts */
create Tree from s[c={"RNames" "CNames"}];
append from s;
call symputx("XPos", range(s[,2])/2); /* midrange = horiz position of star */


The before-mentioned points helped in creating a SAS data set known as TREE that includes the (x,y) positions of the 1s in the direct product matrix. The statements are also good to save midrange value to a macro variable.


Let’s Take Your Data Dreams to the Next Level


Check out the following SAS procedures assist in creating the location of the star, link the two data sets, and draw a scatter plot of the outcome, which you will find at the beginning of this blog


data star;
x = &XPos; y = 0;
data Tree2;
set Tree star;
ods graphics / width=600px height=800px  ANTIALIASMAX=50000;
title "Happy Holidays";
proc sgplot data=Tree2 noborder noautolegend;
scatter x=CNames y=RNames / markerattrs=(color=ForestGreen symbol=SquareFilled size=3);
scatter x=x y=y / markerattrs=(symbol=StarFilled size=20)             /* yellow star */
                  filledoutlinedmarkers markerfillattrs=(color=yellow);
yaxis reverse display=none;
xaxis display=none;


The article is sourced from –, and not contributed by our editorial team.
